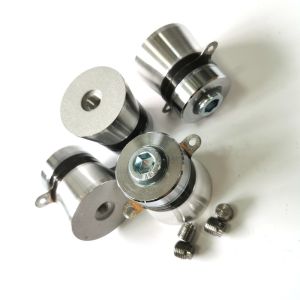

PZT-4 40khz 50W Langevin Piezoelectric Cleaning Transducer

Ask Lasest Price
Brand Name :	Ours
Model Number :	ARS-QXHNQ13550 PZT-4
Certification :	CE and FCC
Price :	USD11/PCS-USD13/PCS
Payment Terms :	T/T, Western Union, PAYPAL
Supply Ability :	1000000pcs
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

PZT-4 40khz 50W Langevin Piezoelectric Cleaning Transducer

40khz/50W Langevin Piezoelectric cleaning Transducer

Piezoelectric ultrasonic probe / transducer has the advantages of high power and high efficiency, which is an important part of ultrasonic application. It is widely used in cleaning, processing and other fields. Our company has many years of experience in power ultrasonic development, various research and development means and testing equipment, and can provide users with complete design scheme and prototype in a short time.

Characteristics of piezoelectric ultrasonic transducer:
1. High performance: high mechanical Q value, high conversion efficiency, excellent quality;
2. The ultrasonic vibrator transducer has large amplitude and excellent performance;
3. Heat resistance of ultrasonic vibrator transducer: piezoelectric ceramic material has good heat resistance, can expand the temperature range, high Q value, small resonance impedance and small calorific value;
4. The appearance of ultrasonic vibrator transducer is neat, without rust, obvious depression and scratch.

Type	Length(mm)	Weight(g)	Frequency(KHz)	Resonance Impedance (Ω)	Static Capacity (pF)±10%	Input Power(W)
ARS-QXHNQ-20100 PZT-8	94	900	20	10-20	5200	100
ARS-QXHNQ-25100 PZT-4	77	710	25	10-20	6600	100
ARS-QXHNQ-28100 PZT-8	66	625	28	10-20	5200	100
ARS-QXHNQ-28100 PZT-4	66	624	28	10-20	6600	100
ARS-QXHNQ-30100 PZT-8	61	555	30	10-20	5200	100
ARS-QXHNQ-2560 PZT-4	77	530	25	10-20	5400	60
ARS-QXHNQ-2860 PZT-8	68	470	28	10-20	3800	60
ARS-QXHNQ-2850 PZT-4	82	425	28	10-20	4100	50
ARS-QXHNQ-3360 PZT-8	58	420	33	10-20	3800	60
ARS-QXHNQ-4060 PZT-8	55	300	40	10-20	3800	60
ARS-QXHNQ-4060 PZT-4	56	310	40	10-20	5400	60
ARS-QXHNQ-4050 PZT-4	54	260	40	10-20	4100	50
ARS-QXHNQ-4050-1 PZT-4	57	300	40	10-20	4100	50
ARS-QXHNQ-5435 PZT-4	36	135	54	10-20	3200	35
ARS-QXHNQ-6860 PZT-8	80	460	68	10-20	3800	60
ARS-QXHNQ-68120 PZT-4	67	588	68	10-20	7800	120
ARS-QXHNQ-8060 PZT-4	60	325	80	10-20	5400	60
ARS-QXHNQ-12060 PZT-4	56	260	120	10-20	5400	60
ARS-QXHNQ-13550 PZT-4	54	215	135	10-20	4200	50

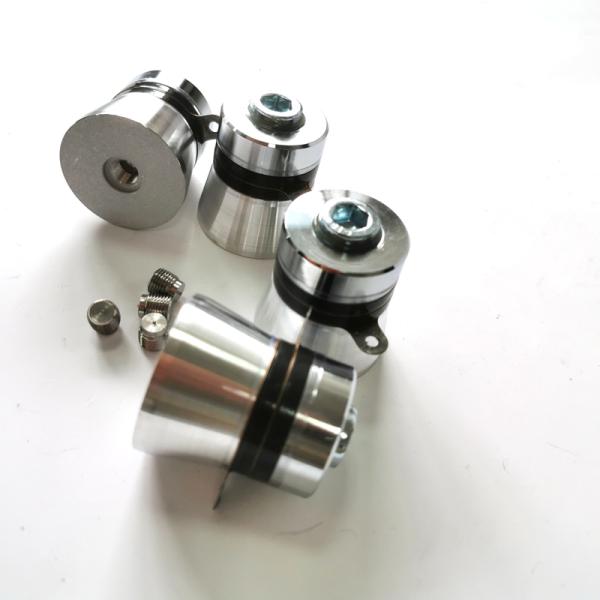

40khz/50W Langevin Piezoelectric cleaning Transducer

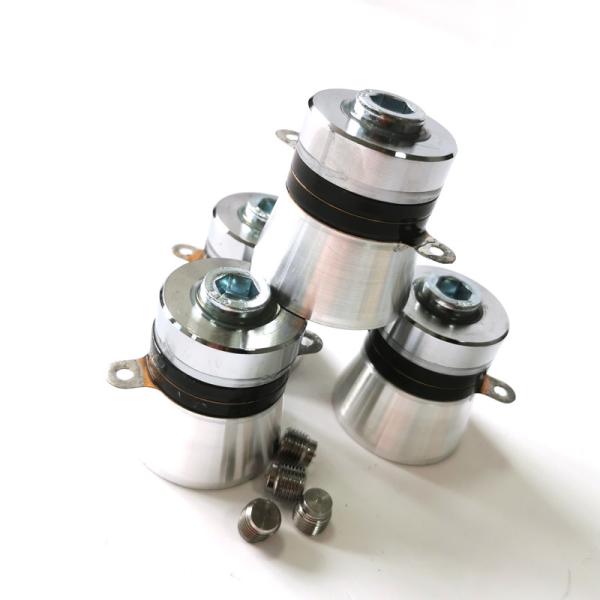

40khz/50W Langevin Piezoelectric cleaning Transducer
