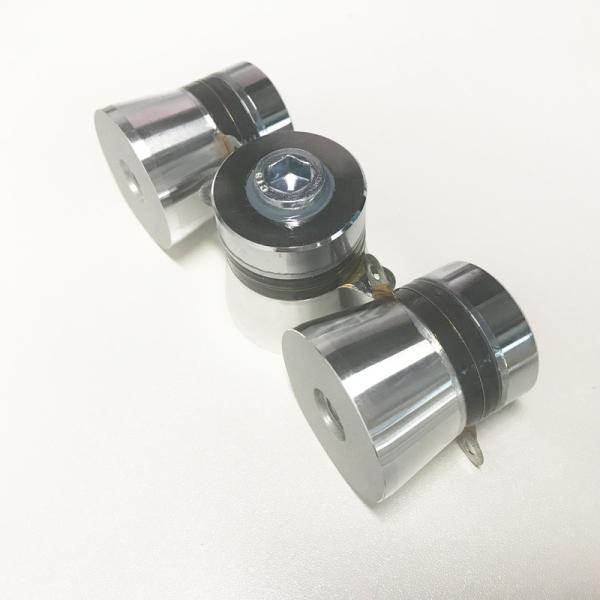

CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz

    Buy cheap CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz from wholesalers

    Buy cheap CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz from wholesalers
    • Buy cheap CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz from wholesalers

    CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz

    Ask Lasest Price
    Brand Name : Ours
    Model Number : ARS-QXHNQ13550 PZT-4
    Certification : CE and FCC
    Price : USD11/PCS-USD13/PCS
    Payment Terms : T/T, Western Union, PAYPAL
    Supply Ability : 1000000pcs
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    CE Ultrasonic Vibration Transducer , Power Ultrasonic Transducer 100W/28khz/50w/40khz

    ultrasonic cleaner transducer for sale 100W/28khz/50w/40khz ultrasonic transducer

    Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

    The function of ultrasonic transducer is to convert the input electric power into mechanical power (ultrasonic wave) and then transmit it, but it consumes a little part of power.
    The technical problem of ultrasonic transducer is to design an ultrasonic transducer with large operating distance and wide frequency band.
    The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a leading cable, and a Cymbal array receiver. The piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with polarization in thickness direction. The Cymbal array receiver consists of 8~16 Cymbal transducers, two metal rings and a rubber washer. The distance of the invention is greater than 35m, and the bandwidth is 10kHz, which can detect the moving target with high speed.
    TypeLength(mm)Weight(g)Frequency(KHz)Resonance Impedance
    (Ω)
    Static Capacity
    (pF)±10%
    Input Power(W)
    ARS-QXHNQ-20100
    PZT-8
    949002010-205200100
    ARS-QXHNQ-25100
    PZT-4
    777102510-206600100
    ARS-QXHNQ-28100
    PZT-8
    666252810-205200100
    ARS-QXHNQ-28100
    PZT-4
    666242810-206600100
    ARS-QXHNQ-30100
    PZT-8
    615553010-205200100
    ARS-QXHNQ-2560
    PZT-4
    775302510-20540060
    ARS-QXHNQ-2860
    PZT-8
    684702810-20380060
    ARS-QXHNQ-2850
    PZT-4
    824252810-20410050
    ARS-QXHNQ-3360
    PZT-8
    584203310-20380060
    ARS-QXHNQ-4060
    PZT-8
    553004010-20380060
    ARS-QXHNQ-4060
    PZT-4
    563104010-20540060
    ARS-QXHNQ-4050
    PZT-4
    542604010-20410050
    ARS-QXHNQ-4050-1
    PZT-4
    573004010-20410050
    ARS-QXHNQ-5435
    PZT-4
    361355410-20320035
    ARS-QXHNQ-6860
    PZT-8
    804606810-20380060
    ARS-QXHNQ-68120
    PZT-4
    675886810-207800120
    ARS-QXHNQ-8060
    PZT-4
    603258010-20540060
    ARS-QXHNQ-12060
    PZT-4
    5626012010-20540060
    ARS-QXHNQ-13550
    PZT-4
    5421513510-20420050


    ultrasonic cleaner transducer for sale 100W/28khz/50w/40khz ultrasonic transducerultrasonic cleaner transducer for sale 100W/28khz/50w/40khz ultrasonic transducerultrasonic cleaner transducer for sale 100W/28khz/50w/40khz ultrasonic transducer





    Packing:

    ultrasonic cleaner transducer for sale 100W/28khz/50w/40khz ultrasonic transducer
