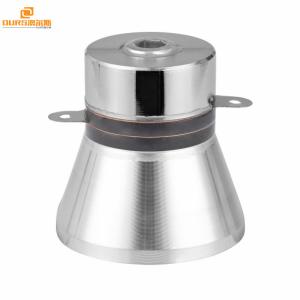

100W Small Ultrasonic Cleaning Transducer 28KHZ for Precision Cleaning

Ultrasonic transducer, also known as ultrasonic vibrator, Ultrasound transducer, is a device that converts electric energy into mechanical energy (ultrasonic). It mainly uses piezoelectric effect of piezoelectric ceramics to realize mutual transformation between electric energy and sound energy, so it is called piezoelectric transducer.

In an ultrasonic cleaner, the object to be cleaned is placed in a chamber containing a suitable solution (in an aqueous or organic solvent, depending on the application). In aqueous cleaners, surfactants (e.g., laundry detergent) are often added to permit dissolution of nonpolar compounds such as oils and greases. An ultrasound generating transducer built into the chamber, or lowered into the fluid, produces ultrasonic waves in the fluid by changing size in concert with an electrical signal oscillating at ultrasonic frequency. This creates compression waves in the liquid of the tank which ‘tear’ the liquid apart, leaving behind many millions of microscopic ‘voids’ or ‘partial vacuum bubbles’ (cavitation). These bubbles collapse with enormous energy; temperatures and pressures on the order of 5,000 K and 135 MPa are achieved; however, they are so small that they do no more than clean and remove surface dirt and contaminants. The higher the frequency, the smaller the nodes between the cavitation points, which allows for cleaning of more intricate detail.

Main Features:

• High Q value.
• Large amplitude.
• High conversion frequency, low heat.
• Output is stable.
• Strict quality control.

Application:

• Strong cavitations, powerful and effective, quick detergence.
• Automotive and aerospace industry, mechanical industry, plating industry etc.

Payment Methods:

• Prepaid by Bank
• T/T
• West Union

Port: ShenZhen

Packaging Details:

Carton of other required for 100W 28K Ultrasonic Cleaning Transducer.

100W Small Ultrasonic Cleaning Transducer 28KHZ for Precision Cleaning

Ours Ultrasonic Co.,Ltd

Ours Ultrasonic Co.,Ltd was established in 2009 .Registered capital of 3 million.Our Plant located at Shenzhen ,China More than 2,000 square meters . The company employs 100-150 people, including 10 technicians and 15 international and domestic sellers. Ultrasonic digital generator and PCBs . monthly production is 1000-3000 units, and ultrasonic cleaning and welding transducer 200,000pcs,ultrasonic immersible pack about monthly 20,000 sets.

At OURS ULTRASONIC ,We specially made an easy high power ultrasonic way ,We are manufacturer of Ultrasonic generator for cleaning and welding ,Ultrasonic transducer for cleaning,welding and powder vibration . Ultrasonic immersible transducer pack and cleaning machine ,Piezoelectric ceramic &ultrasonic equipment.

Our vision:High power ultrasonic is our main service purpose,the products what we offered are the best quality with best price,also excellent sale service for you always.

Meet in OURS ULTRASONIC:We are committed to the transmission of industrial ultrasonic to all parts of the world.OURS Ultrasound products all over the world.

Working at OURS ULTRASONIC:Professional ultrasonic technology service.Provide the best pre-sale ,Sales service,and after sales service.

Living in OURS ULTRASONIC:We are committed to expanding ultrasound products.Making OURS Ultrasonic Products being an important Part of Everyday Life.

We exported to Europe,America,Asia, Oceania,even Africa. such as Italy, Slovakia,Netherlands,France,Germany, Russia，Croatia, Slovenia, Switzerland, Portugal,USA, Canada,Mexico,Brazil, Ireland, Philippines,India,Malaysia, Indonesia,South Africa,etc.

We Trust that Ours Ultrasonic company will be come true the world wide brand name in near future and your support is most importance and positive for us,Let’s go for Ultrasonic Industry!
